products name: RH400 Portable B/W Ultrasound







Maximun Scanning Depth: 250mm Multi-frequency: 5 segment frequencies
Cine Loop: max:1024 frames            Scanning mode: B,2B,B/M,M,4B,9B ,ZOOM
Real-time Zoom on B mode              Image gray scale:256 level gray scale
Image processsing:Pre-processing, after-processing, dynamic range, frame rate, line average,edge enhancemnet,

Black/White inversion, Gray scale adjustment, contrast, brightness, ƴ revision
Gain: 0-100dB,Time gain control(TGC): 8 segment adjustment, B,M adjustment separatey
Measurement and calculation(human):
B mode: distance, circumstance, are, volume, angle, ratio, stenosis, profile, histogram
M mode: heart rate, time, distance, slope and stenosis
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary
Obstertirc: gestation age, fetal weight, AFIs
Cardiology: LV,LV function, LVPW, RVAVWT
Urology: transistion zone volume, bladder volume, RUV, prostate, kidney
Small parts: optic, thyroid, jaw and face
Veterinary: Cattle; BPD, CRL, TD; Horse: GA, Dog: GS,  Cat: HD, BD  Sheep: BPD, CRL TD
Supported output apparatus: USB disk, Laser/ink printer,  video printer, VAG
Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
Image store: by hard disk or USB disk, can save image and also video(avi or swf format)
3D image function: can get rebuil 3D image by any probe
Multiple language: English, French, German, Spanish, Russian, Italian, Protuguese, etc.
Work time by built-in battery : about 5 Hours      Detail : report function
Monitor: 15 inch color LED screen                   Probe Connector: 2
Dimension:362mm*340mm*60mm                 Weight: 4.8kg

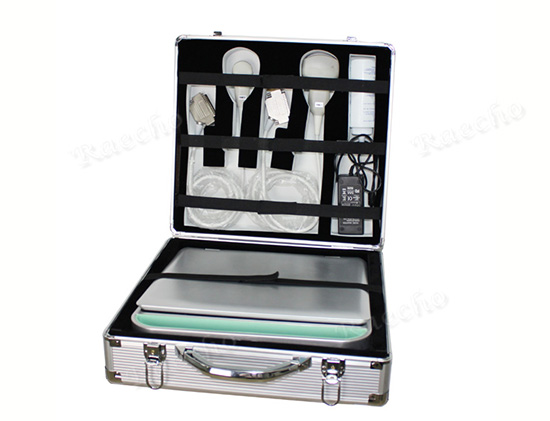

Standard Configuration: one main host, one convex probe(3.5MHz), one power adapter, one aluminum trunk
Optional: Linear, Trans-vaginal, Micro-convex, Rectal Probe, Trolley; Laser Printer
