products name: RAE-101A

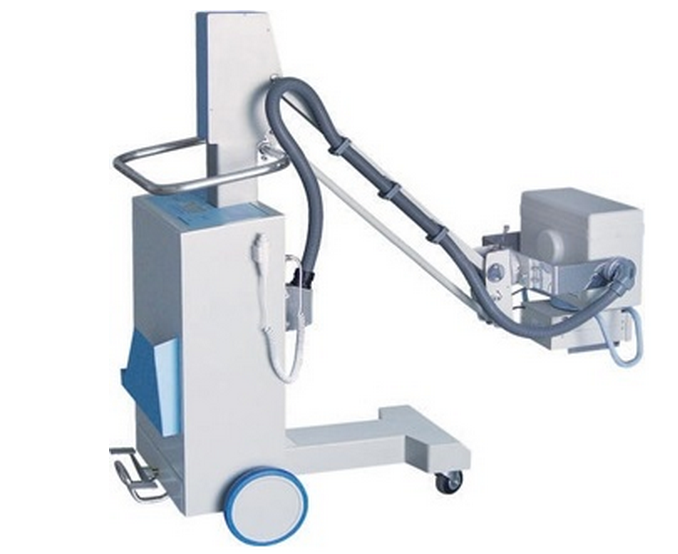

The equipment is a combined high frequency X-ray Equipment that can be conveniently moved to wards, ICU, operating rooms and etc for taking film.


Features
1. With high frequency inverter to emit high quality X-ray and low dose on skin, and ensure excellent definition and contrast of pictures.
2. With techniques of KV analog closed loop control, mAs digital closed loop control and micro-processing real-time control to ensure precision and repeatability of the dose.
3. With kV, mAs two button adjustment, LCD display, multifunction of safety guard.
4. With 50 preset exposure programs, and can be modified and stored by the user for convenient operation.
5. With a high-quality knockdown X-ray generator to reduce irradiation, which is much safer to environment and operator.
6. With a symmetrical beam applicator to adjust the X-ray field and a collimator lamp to locate the filed to ensure accurate radiograph.


Specifications

Power Output

3.5KW

Frequency

40KHz

X-Ray Tube

Fixed anode

Focus 1.5

Tube Voltage

40~110KV (interval 1KV)

Tube Current

40~49KV 63mA 1~125 mAs

50~59KV 56mA 1~110 mAs

60~69KV 45mA 1~90 mAs

70~79KV 40mA 1~80 mAs

80~89KV 36mA 1~71 mAs

90~99KV 32mA 1~63 mAs

100~110KV 20mA 1~40 mAs

mAs

1.0~125 mAs (45 steps)

Power Supply

220V±10% 50Hz inner-resistance≤1.0
