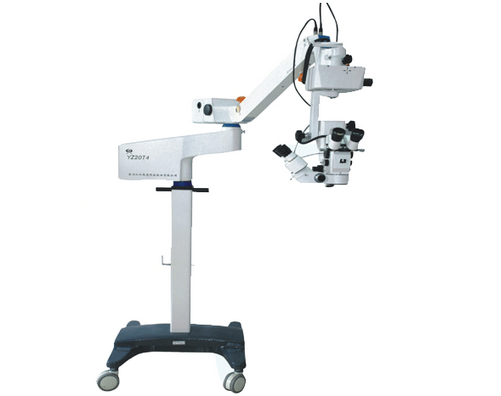

◆Assistant microscope can be converted to opponent microscope to meet the operation needs in ophthalmology and other departments.
◆Internal beam splitter can be connected with teaching tube and CCD system.
◆Equipped with three different objective lenses（f200/f250/f300）and applicable in ophthalmic surgery, orthopedic surgery and hand surgery.
◆Oblique illumination can be used as slit illumination with slit width adjustable and 360° rotatable.
◆Multi-layer coating technology is used on all lenses to prevent mildew and enhance lens transmittance.
◆X/Y mobile automatic reset
Specifications
Eyepiece Magnification
12.5×, 18×
Diopter Adjustment
±7D
Magnification for Main Microscope
f200: 4×, 6×, 10×, 16×, 25×
f250: 3.2×, 5×, 8×, 12.8×, 20×
f300: 2.7×, 4.2×, 6.7×, 11×, 17×
Magnification for Assistant Microscope
f200: 6×, 10×, 16×
f250: 5×, 8×, 12.8×
f300:4.2×, 6.7×, 11×
Focal Length of Objective Lens
f=200 /250/300 mm
Pupilary Adjustment
50 mm ～ 75 mm
Maximum Resolution
112 LP/mm
Working Distance
190 mm
Light Source
12V/100W, medical cold reflection halogen lamp
Illumination Type
6°+0° coaxial illumination, 20° oblique illumination(can be used as silt illumination with slit width adjustable)
