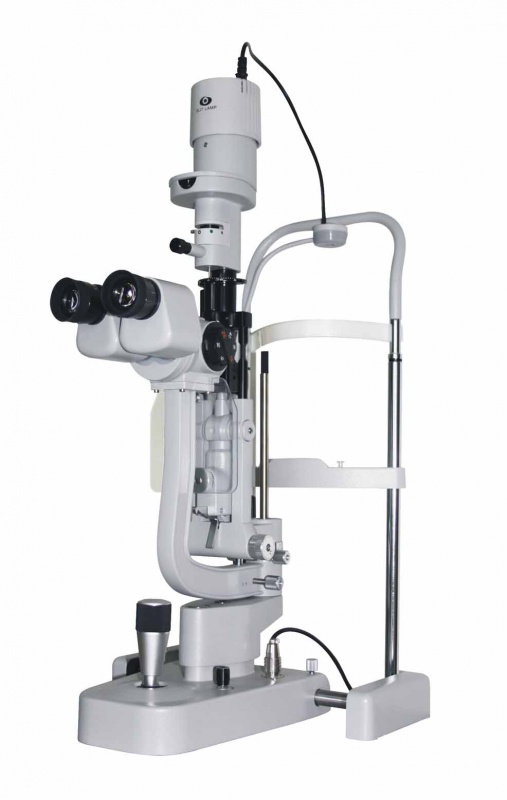

Microscope
|
|
Microscope Type
|
Galileo magnification changer with converging
|
|
Magnification Change
|
Switch zoom
|
|
Eyepieces
|
10x, 16x
|
|
Magnifications
(Field of View)
|
10x eyepiece: 10x(φ18 mm), 16x(φ14.5 mm)
|
|
16x eyepiece: 16x(φ11.25 mm), 25.6x(φ9 mm)
|
|
Pupilary Adjustment
|
10x eyepiece: 55 mm～82 mm
|
|
16x eyepiece: 51 mm～78 mm
|
|
Diopter Adjustment
|
10x eyepiece: ±8D
|
|
16x eyepiece: ±10D
|
|
Slit Illumination
|
|
Slit Width
|
continuously variable from 0 ～9 mm adjustable(at 9 mm, slit becomes a circle )
|
|
Slit Height
|
continuously variable from 1 mm～8 mm
|
|
Slit Angle
|
0°～180° ( continuously adjustable both vertical and horizontal)
|
|
Slit Inclination
|
5°, 10°, 15°, 20°
|
|
Aperture Diameter
|
φ9mm, φ8mm, φ5mm, φ3mm, φ2mm, φ1mm, φ0.2mm, φ0.015mm
|
|
Lamp
|
6V/20W Halogen bulb
|
|
Maximum Illuminance
|
≥120,000 Lx
|
|
Filter
|
Thermal safety, grey, red-free, cobalt blue
|
|
Base
|
|
Longitudinal Movement
|
90mm
|
|
Lateral Movement
|
100mm
|
|
Vertical Movement
|
30mm
|
|
Chinrest
|
|
Vertical Moement
|
80mm
|
|
Fixation
|
Red LED
|
|
Power
|
|
Input
|
AC 220V /110V ±10%, 50Hz/ 60Hz
|
|
Power Consumption
|
30VA
|
|
Output voltage
|
Lamp: 2V ~ 6V
|
|
Fixation: 6V
|
|
Electrical Safety Standard
|
IEC 60601－1, Class I, Type B
|
|
Dimension & Weight
|
|
Packing Volume
|
720 mm x 495 mm x 480 mm
|
|
Total Weight
|
24 Kg
|
|
Net Weight
|
21 Kg
|
