◆Professional digital camera is more sensitive to the changes of patient’s eyes, even the smallest changes.
◆Aperture diameter is 14 mm to provide wide range of field of view.
◆Schott optic lenses from Germany are used to reduce optical distortion and increase clarity and depth of focus.
◆Optical effect is maintained by multi-layer coating treatment of moisture-proof, mildew-proof and anti-reflected on lenses.
◆Osram bulb is used to provide the low heat, high brightness and uniform illumination.
◆5-step drum magnification for eyepiece. Sclera vein could be observed under the 40x magnification.
◆Visual assembly technology is used to ensure excellent optical performances and long service time.
◆UV protection filter is used in the illumination design to ensure patient’s safety during examination.
◆All interfaces can connect with accessories comply with international standards.

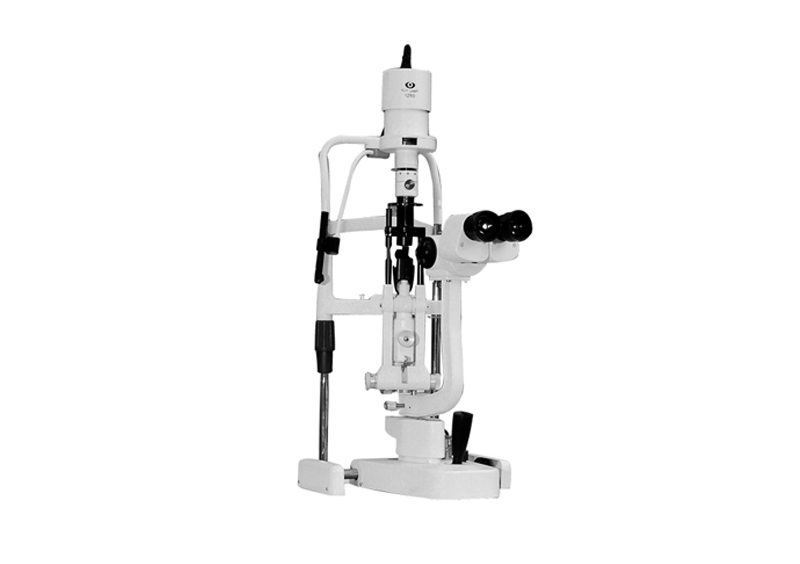

Microscope
Microscope Type
Galilean stereoscopic microscope
Magnification Change
Five-step revolving drum
Eyepieces
12.5x
Magnifications
(Field of View)
6x(φ33 mm), 10x( φ22.5 mm ), 16x( φ14 mm ),25x( φ8.8 mm ), 40x( φ5.5 mm )
Pupilary Adjustment
55 mm～75 mm
Diopter Adjustment
-5D~+3D
Slit Illumination
Slit Width
continuously variable from 0 ～14 mm adjustable(at 14 mm, slit becomes a circle )
Slit Height
continuously variable from 1 mm～14 mm
Slit Angle
0°～180° ( continuously adjustable both vertical and horizontal)
