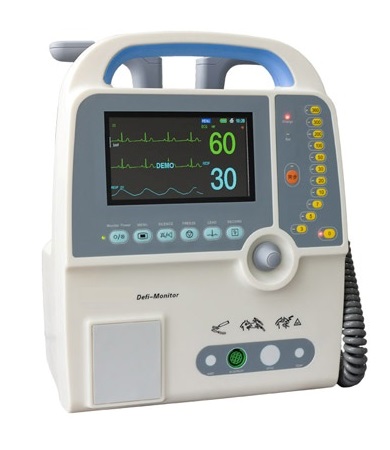

products name: DEF-8000D



Technical Specifications
Defibrillator
-Defibrillator type: Manual, Synchronized, Asynchronized,
-Output waveform: Biphasic technology
-Energy accuracy: <+1%
-Energy selection: 0,3,5,7,10,20,30,50,100,200,300,360 Joule (nominal at a resistance of 50)
-Charging time: Maximum 8 seconds to 360 Joules
-Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatric paddles integrated)

Power requirements
-AC Power supply: 110V, 60 Hz /220V, 50 Hz
-Vehicle Voltage: DC 12V

Internal Battery Backup
-Battery type: Rechargeable lithium battery
-Charging time: Time-Minimum of 4 hours for full charging
-Battery charging: During AC Power Supply operation of the device.
-Charging /Low Battery Indication: Red LED
-Battery Capacity: 100% of the battery will provide 120 mins of monitoring; and 30 discharges at 360 joules.

Display
-LED Dimensions: 7’diagonal {155mm*88mm}
-Type: High resolution true-color graphic LED
-Resolution: 480X234

ECG
ECG lead: I, II, III, AVR, AVL, AVF, V1-V6, GND
S-T segment analysis: -2.0-2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical interfere and defibrillation

Respiration
Measurement method: Thoracic impedance

Standard parameter & configuration
ECG/RESP/DEFIBRILLATOR

Optional
Recorder



Add to Enquiry List
