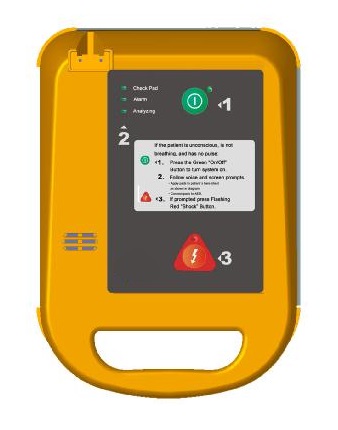

products name: RAED-7000



Technical Specifications
--Portable Automated External Defibrillator (AED).
--It is easy to operate and use. It requires low for operator and can be equipped for household or public; and supply first-aid to the abrupt death promptly.
--Adopting ECG analysis advanced technology of ARI Company, it can analyze the patient’s ECG to judge the heart’s state, whether to defibrillate and its energy. It can not only improve the success rate, also reduce the hurt to heart to lowest degree.
--Pulse Type: Biphasic Waveform.
--Three-step defibrillation process
--Two-button operation
--Extensive voice and visual prompts for the operator
--Continuous event recording for reporting each use to a printer or computer
--Weekly self-test to ensure readiness
--Biphasic energy output
--Lock-out protection to prevent inadvertent defibrillation

Defibrillator
Output: Biphasic Truncated exponential
Energy Sequence: 150, 150, 200J
Charge Time: 4sec. to150J; 8 sec. to 200J
Analysis Time: 4-16 sec.
Combined Analysis and Charge Time from power up after 6shocks: From start of analysis to shock ready: Less than 20 seconds to 150 J; Less than 30 seconds to 200 J
Audible Prompts: 20 audible prompts
Visual Prompts: LED prompts
Controls: Two buttons - On/Off, Shock
Output Energy Accuracy: ±15% or ±3J (whichever is greater) to any impedance from 25 to 175Ω

Battery
Non-Rechargeable LiMnO2 12V, 3.0 Ah
Capacity: 100 discharges at 200 Joules or 120 discharges at 150 Joules
Shelf Life (25°C±15°C): 10 years (5 years storage + 5 years standby) 5 years standby (after installation)

Electrical Isolation
Power: Unit operates on internal battery only
External Electrical Connections:
No external devices are attached to the unit
Risk Current Category: Internally powered equipment with defibrillator-proof BF type patient applied part (as per definition of IEC 60601-1 standard)

Physical
Dimensions: 300 X 210 X 80 mm
Weight: 2 kg
