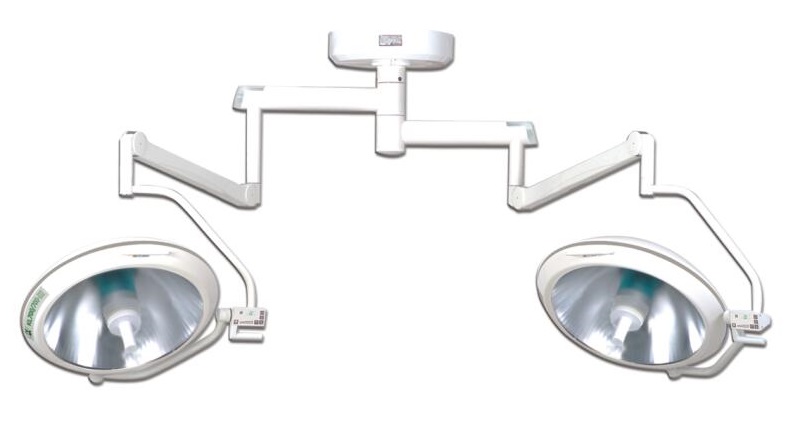

products name: RAE-OL700/700-III





Technical Specification:
-Illumination: 80,000-160,000LX x2 (at 1m distance)
-Facula diameter: φ100~φ280mm
-Depth of light beam: ≥600mm
-Brightness adjustment: 8-stage continuous
-Shift of major and stand by lamps: automatic
-Color temperature: 4500K±500K
-Temperature rise:≤12℃
-Temperature rise on the head of patient:≤2℃
-Diameter of lamp holder: 700mm ×2
-Mains voltage: AC220V±20% 50Hz
-Bulb voltage: AC24V Bulb power
-Input power: 200VA ×2
-Height for installation: 280-320cm
-Battery is optional



Features:
-The no welding titanium alloy main arm is adopted, so that the appearance is aesthetic and the rotation is more flexible and convenient.
-The removable handle sheath can be disinfected at the high temperature of 135℃.
-The depolished panel made of imported material makes the light rays softer.
-The imported switch power supply is adopted to control the voltage, making the work voltage permanently stable.
-The special radiation filter reducing the heat to the minimum level.
-The multi-flake retroreflector made of imported aluminum sheet has the features of no coating film and never fading.
-Imported lamp receptacle, Tungsten halogen bulbs of international brand are adopted with the average service more than 1500 hours.
-Light adjustment circuit adopts CPU control, enabling increase or decrease of illumination and boasting brightness memory.
-One lamp holder with two bulbs enables automatic operation of the standby bulb in 1/2 second when the main bulb malfunctions, and it has indicators for the damage of main or standby bulb.
