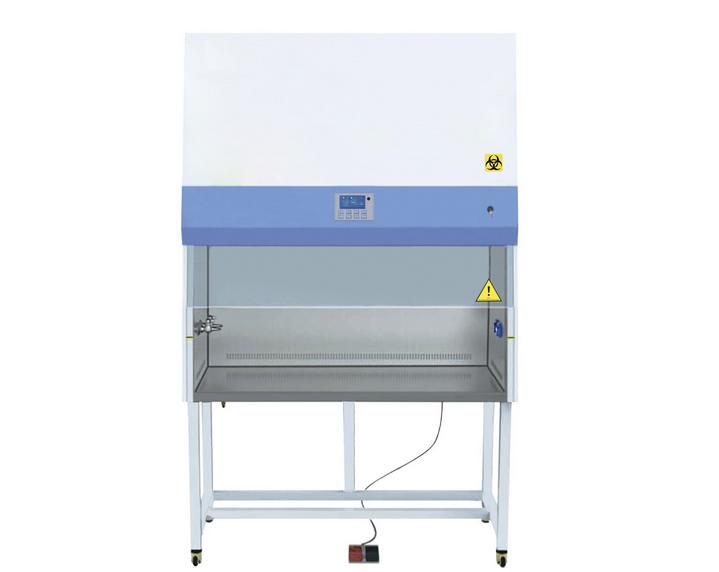

products name: BS-IIA2 Series



Advantages:
1. A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
2. Three protection: operator, sample and environment.
3. Airflow system: 70% air recirculation, 30% air exhaust.

Features:
1. Large Digital LCD display is easy to monitor all the safety parameters at a glance and ergonomically sized control panel improves user interface.
2. Work zone is made of 304 stainless steel, is surround by negative pressure.
3. 2 waterproof sockets are located in the side panel for optimum convenience of using small devices inside the cabinet.
4. All functions can be realized with remote control, making the operation much easier and convenient.
5. UV lamp: Emission of 253.7 nanometers for most efficient decontamination.
6. Motorized Front Window: Two-layer laminated toughened glass>5mm, anti UV
7. Foot master caster: Universal caster with brake and leveling feet. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
8. Foot Switch: Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
9. Time Reserve Function.
10. HEPA Filter life and UV Life indicator.
11. Automatic air speed adjustable with filter block.
12. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
13. Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity etc.).
14. Most accessories are standard. No need to pay more, save your money.
15. Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.





Model

BS-1100IIA2

BS-1300IIA2

BS-1500IIA2

BS-1800IIA2

BS-2000IIA2

Internal Size

(W*D*H) (mm)

940* 600*660

1150*600*660

1350*600*660

1710*600*660

1800*600*660

External Size

(W*D*H) (mm)

1100*750*2250

1300*750*2250

1500*750*2250

1870*750*2290

1950*800*2305

Tested Opening

Safety Height 200mm (8")

Max Opening

420mm (17")

420mm (17")

400mm (16")

400mm (16")

400mm (16")

Inflow Velocity

0.53±0.025 m/s

Down flow Velocity

0.33±0.025 m/s

HEPA Filter

Two, 99.999% efficient at 0.3 um. Filter life indicator.

Front Window

Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.

Noise

EN12469 ≤ 58 dB / NSF49 ≤ 61 dB

UV Lamp

30W*1

30W* 1

40W* 1

40W*2

40W* 1

UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.

Fluorescent Lamp

21W*2

21W*2

28W*2

40W*2

40W*2

Illumination

≥1000Lux

Consumption

760W

800W

900W

900W

1500W

Waterproof Sockets

Two, total load of two sockets: 500W

Display

LCD display: exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature,  system working time etc.

Control System

Microprocessor

Airflow System

70% air recirculation, 30% air exhaust

Visual and audio alarm

Filter replacement, window over height, abnormal air flow velocity.

Material

Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height

750mm

Caster

Foot master caster

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz
