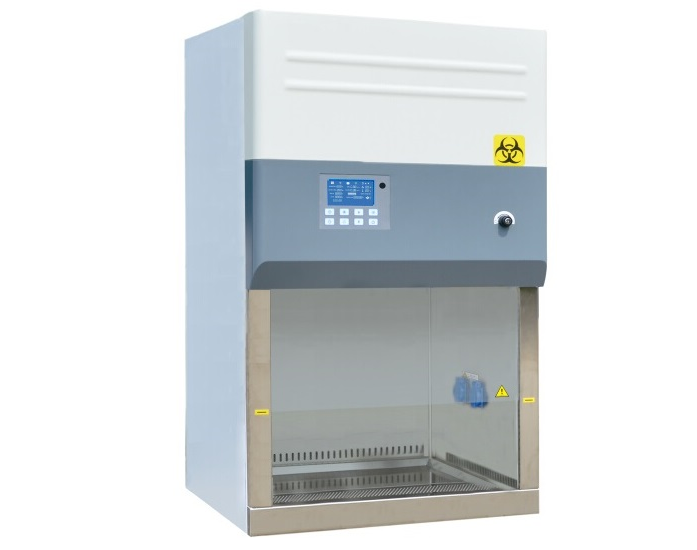

products name: BS-86IIA2 Class II A2



Advantages:
1. A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
2. Three protection: operator, sample and environment.
3. Airflow system: 70% air recirculation, 30% air exhaust.

Features:
1. Large Digital LCD display is easy to monitor all the safety parameters at a glance and ergonomically sized control panel improves user interface.
2. Work zone is made of 304 stainless steel, is surround by negative pressure.
3. 2 waterproof sockets are located in the side panel for optimum convenience of using small devices inside the cabinet.
4. Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.
5. UV lamp: Emission of 253.7 nanometers for most efficient decontamination.
6. Small dimension, save space.
7. Centrifugal fan, speed, adjustable; H14 HEPA filter.
8. Large LCD display: Operators can check detailed status of the cabinet, such as inflow and down flow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.
9. Time reserve function: This can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.
10. Motorized front window: The front window is motorized for convenient, one-hand operation.
11. Voice prompt function: Airflow alarm, filter replacing alarm and front window height alarm.







Model

BS-86IIA2

External Size(W*D*H)

700*650*1230 mm

Internal Size(W*D*H)

600*500*540 mm

Tested Opening

Safety height: 200mm (8")

Max Opening

370 mm (15")

Inflow Velocity

0.53±0.025 m/s

Down Flow Velocity

0.33±0.025 m/s

HEPA Filter

Two, 99.999% efficient at 0.3μm. Filter life indicator.

Front Window

Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV.

Noise

EN12469 ≤ 58 dB / NSF49 ≤ 61 dB

UV Lamp

15W*1

UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination

Fluorescent Lamp

40W*1

Illumination

≥1000Lux

Consumption

500W

Socket

Two, total load of two sockets: 500W

Display

LCD display

Control System

Microprocessor

Airflow System

70% air recirculation, 30% air exhaust

Visual and Audio alarm

Filter replacement, window over height, abnormal air flow velocity.

Material

Work Zone: 304 stainless steel

Material

Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height

750mm with optional base stand

Power Supply

AC220V±10%, 50/60Hz; 110V±10%,60Hz

Standard Accessory

Fluorescent lamp, UV lamp*2, Remote control, Waterproof sockets*2

Optional Accessory

Base stand, Universal caster with brake and leveling feet

Gross Weight without Base  Stand

Wooden box: 164kg, Carton:121kg

Gross weight with Base Stand

Wooden:196kg

Package Size without Base Stand

Wooden:860*800*1450mm, Carton:820*760*1430mm

Package Size with Base Stand

Wooden: 860*960*1450mm
