Advantage:

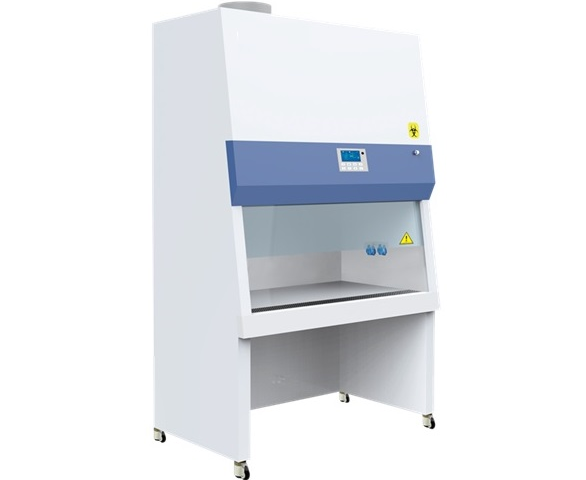

1. Cytotoxic Safety Cabinet is the premium solution for cytotoxic / antineoplastic drug processing, providing the highest level of patient, pharmacist and environmental protection.
2. The unique demands of handling and preparing cytotoxic drugs for use in chemotherapy require a specialized cabinet.
Features:
1. Remote Control: All functions can be realized with it, making the operation much easier and more convenient.
2. LCD Display: Large digital display is easy to monitor all the safety parameters at a glance and ergonomically sized control panel improves user interface.
3. Water and Gas Taps: High quality stainless steel.
4. UV Lamp: Emission of 253.7 nanometers for most efficient decontamination.
5. Front Window: Motorized ,Two-layer laminated toughened glass＞5mm, anti UV.
6. Bag In and Bag out Filter: The PVC bag can ensure the safety of the personnel and the environment, and make the replacement process convenient and quick.
Model
BS-86IIB2
Internal size(W*D*H)
1220*660*630mm 48"*26"*24.8"
External size(W*D*H)
1370*760*200mm (8") 53.9"*29.9"*86.6"
Working Opening
440mm (17")
Internal Work Area, space
0.73m3
Inflow Velocity
0.53 m/s
Down Flow Velocity
0.33 m/s
Exhaust Volume
465m3/h (237cfm)
Air Supply Filter
ULPA filter, efficiency＞99.999% for partical size at 0.12μm
Exhaust Filter
2pieces HEPA filters, efficiency＞99.999% for partical at 0.3μm. Fitter life indicator and filter working time indicator
Alarm
Audio and visual alarm ,filter replacement, window over height abnormal airflow velocity
Noise
EN12469≤58dB/NSF49≤ 61 dB
Water &Gas Tap
Water Tap*1,Gas tap*1
UV lamp
30W*1. Emission of 253.7nanometers for most efficient decontamination UV life indicator
Fluorescent Lamp
28 W*2
Illumination
≥1000 lux
Consumption
900 W
Waterproof Socket
Two; total load of two sockets: ≤500W
Display
LCD Display
Control Sys tem
Microprocessor
Humidity and Temperature
Humidity and temperature can be displayed on the control panel
Material
Work Area: 304 stainless steel;
Main Body: Cold-rolled steel with anti-bacteria powder coating
Front Window
Motorized, two-layer laminated 5mm toughened glass. Anti UV.
Caster
Foot master Caster
Power Supply
AC220V± 10%,50/60HZ；110V±10%，60HZ
Standard Configuration
Base stand, Drain valve, waterproof sockets*2, Remote control,
UV lamp*2 and Fluorescent Lamp, Water tap ,Gas tap
