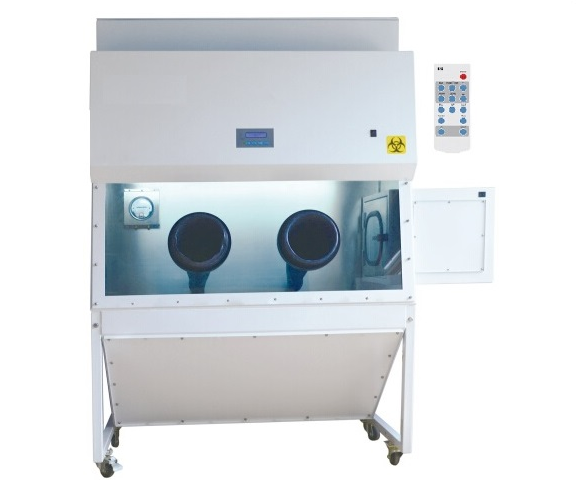

products name: BS-1500III Class III



Advantage:
1. Class III Biosafety Cabinet is totally enclosed and gas-tight with ULPA filtered supply and exhaust air. Work is performed with long-sleeved gloves.
2. The cabinet is kept under negative pressure of at least 120 pa, and airflow is maintained by a dedicated exterior exhaust system.
3. It can protect the operator, product and environment.

Features:
1. Pass Box: Double doors with interlock function and UV lamp.
2. Pressure Meter: Display the pressure of work zone.
3. UV Lamp: Emission of 253.7 nanometers for most efficient decontamination.
4. LCD Display: Large display is easy to monitor the pressure parameters for work zone and three filters.
5. UV lamp ensures work area sterilization effectively.
6. An angled cabinet front ensures an ergonomic working posture.
7. Exhaust air is double-filtered through high-quality ULPA filters with typical efficiency of 99.999% for 0.1~0.2μm particles





Model

BS-1500III

External Size (W*D*H)

1720*850*2100 mm

Internal Size (W*D*H)

1240*650*650 mm

Pass Box Size (W*D*H)

Internal Size: 400*390*340 mm

External Size: 480*400*400 mm

Gloves

One pair of 800mm butyl rubber gloves

Front Window

8 mm toughened glass, anti-ultraviolet radiation

Display

LCD display

Pre-filter

Polyester fiber, washable

Pressure

≥ negative120 Pa

ULPA Filter

Air supply filter: Efficiency 99.999% at 0.12μm

First exhaust filter: Efficiency 99.999% at 0.12μm

Second exhaust filter: Efficiency 99.999% at 0.12μm

Noise

NSF 49 ≤61dB/EN 12469≤48dB

Airflow Volume

440-870cfm

Alarm

Audio and visual alarm, abnormal pressure; filter replacement

Work Zone Material

304 stainless steel

Illumination

≥ 1000 lux

Consumption

700W

Fluorescent Lamp

28W*2

UV Lamp

30W*1, 8W*1, Emission of 253.7 nanometers for most efficient decontamination

Power Supply

AC220V±10% , 50/60 Hz; 110V±10%, 60Hz

Gross Weight

395kg

Package Size (W*D*H)

1850*1080*2280mm

Standard Accessories

Gloves, fluorescent lamp, UV lamp*4, remote control, pressure meter, drain valve
