Model
|

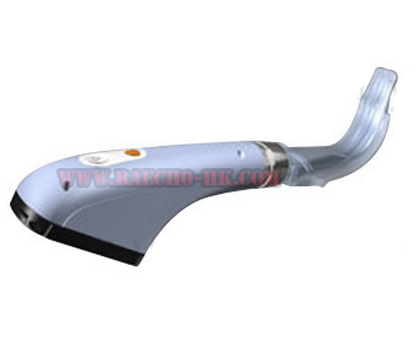

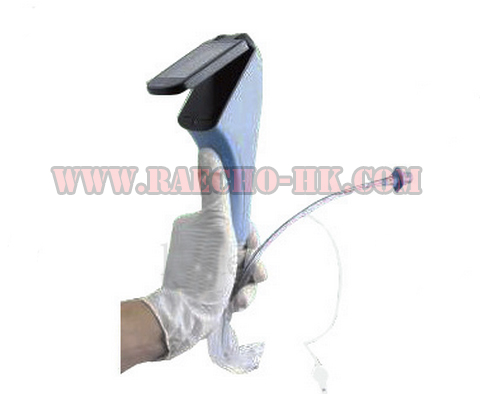

LTVIS-1000 hot sale medical hospital mini Video laryngoscope
|
|
Imaging mode
|
Full digital color imaging
|
|
Imaging module
|
Dimension
|
-
1. 1/12inches
|
|
Effective pixels
|
-
1. NTSC 720(H)*525(V)
-
2. PAL: 729(H)*625(V)
|
|
Minimum illumination
|
0.8Lux
|
|
SNR
|
-
1. 38 DB
|
|
Dynamic range
|
66 DB
|
|
Aperture
|
F2.8
|
|
Focus
|
20mm-70mm
|
|
Viewing angle
|
90°(LCDdiagonal)
|
|
Display system
|
Monitor dimension
|
2.4"TFT-LCD
|
|
Monitor rotation angle
|
0°~120°
|
|
Backlight mode
|
-
1. 2 LED lamps in series
|
|
Resolution
|
-
1. 640(H)×240(V)
|
|
Visual range
|
U/D/L/R(20/50/40/40)
|
|
Illumination
|
>250cd/m²
|
|
Display dimension of LCD monitor
|
44.46(H)×61.7(V)
|
|
Visible area
|
37.8(H)×50.279(V)
|
|
Output
|
PAL/NTSC Composite video signal
|
|
Illumination
|
Light source
|
White LED
|
|
Power supply
|
Voltage
|
3 AAAalkaline batteries
|
|
Power consumption
|
2W
|
|
Average service life of battery
|
45 minutes (alkaline battery)
|
|
Memory capacity
|
128MB
|
|
External dimension(B x H x T)
|
51x330x75.5mm
|
