ITEM DESCRIPTION

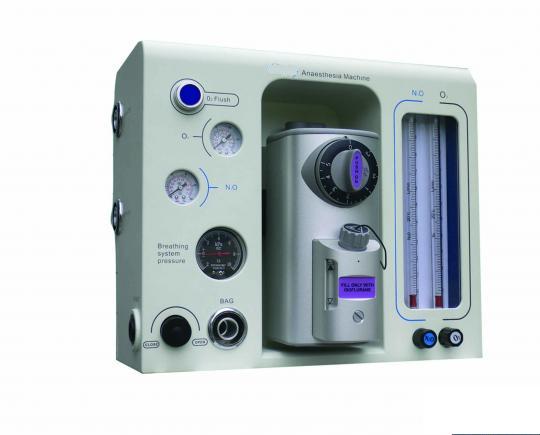

Veterinary Anesthesia machine

This machine is fully up to the CE standards for medical equipment. The

only mode for the anesthesia : manual. The data displayed include Paw

and floemetre. The vaporizer has advanced flow, pressure and

temperature compensation functions. High-precision flowmeters fully

meet the requirements of anaesthesia machine running in a close mode.

Special Feature

1. Ventilation Method: closed, half-closed, half-open

2. Small and compact unit ideal for office based anesthesia

3. Built-in CO2 circle absorber system

Main Unit

1. Tidal volume (manual mode):20-1500 ml

2. Work Pressure: 0.3-0.4Mpa

3. Flowmeter: O: 0.1-101/min

4. APL valve: 0.5-6.0K

5. O2 flush: 25-75L/min

Vaporizer

1. 1 vaporizer, Enflurane, Isoflurane

2. Capacity: 250ml

3. Automatic compensation for Temperature, Flow and pressure

4. Concentration range:

Enflurane 0.2-5%

Isoflurane 0.2-5%

5. Flow Range: 0.2-10L/min for concentration> 5% 0.2-15L/min

6. Temperature Range:

Operating 15-35℃

Storage: -40-50℃

Option

AP-TH Anesthesia Ventilator

AP-TH Anesthesia Ventilator
