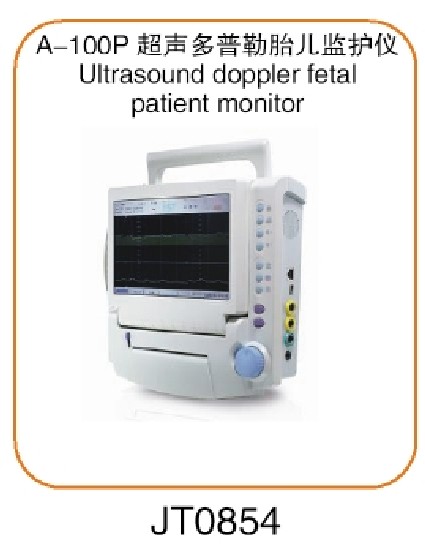

Features:

10.2 inch TFT LCD which turned freely within 90° indicates twins FHR/TOCO as

numeral, trend diagram and outputs fetal heart sound.

480 patients CTG data storage with 24 hours record for each patient and reload ability

(Up to 11,520 hours record capacity).

Support twins monitoring simultaneously

High Sensitive 2.0 MHz Pulse Doppler Transducer with 10 wafers.

Automatic/Manual fetal movement Measurement. LCD display width is 112mm wide as same as printing paper，which enables more

accurate and visual graphs reading.

Built-in 112mm Thermal printer with adjusted printing speed 1,2,3cm/min

Patient’s name, age, Gravida para and period can be input for the record information.

Three working modes( Curve, Numerical, Replay ) are available.

Event marker made 10 kind events.

AC power and rechargeable Li-ion battery are available for power supply.

RJ45/USB connection interface available.

FHR:

Pulsed Doppler Ultrasound Frequency: 2.0MHZ

Intensity : 5 mW/㎠ or less

FHR Range:50-240bpm

FHR Accuracy: ±1ppm or less

FM:

Manual FM marker

Automatic identification of fetal movement

TOCO:

External Type

Reference (zero) Control

Measurement Range: 0 ~ 100 units

Accuracy: 10% or less

PRINTER:

Thermal Array Type: 112mm X100mmX160P

Print Speed: 0,1. 2. 3 cm/min selectable

Appointed time printing

Memory print

Easy Paper Feeding Function

Sound:

Doppler Sound with volume control

Alarm Sound for improper FHR(120bpm-160bpm)

Power supply:

Input: AC 100 ~ 240V (50/60 Hz)

Consumption: 60 VA

D.C.: 14.4V/2000mAh rechargeable

Function:

Fetal Mark Function

Memory Function

Event mark function

Alarm on/off function

Volume +/- function

Menu set function

Set-up:

Language set-up

Time & Date set-up

Print Speed set-up

Local IP/server IP set-up

FHR1, FHR2 Chanel set-up

FM Auto/Manual

Display:

10.2-inch TFT LCD (800 x480) display:

Alarm light for Improper FHR limit

DC/AC power status light

Standard Accessory:

Ultrasound pulse Doppler Probe 1 pcs

TOCO Probe 1 pcs

Print Paper 2 pcs

Rechargeable Li battery 2200mAH 1pcs

Probe Belt 2 pcs

Operation Manual 1 pcs

Power cord 1pcs

Dimension: 285mm(L)X 310mm(W)X95mm(H) Net Weight: 3.7kg

Warranty: 2 years (probe excluded)

Outbox Dimension: 420mm(L) × 360mm(W) × 260mm(H)

Gross weight: 6.0Kg
